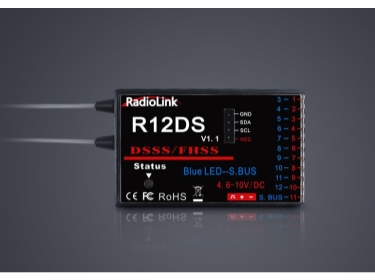

Radiolink 2.4GHz R12DS 12 Ch Receiver SBUS/PWM DSSS&FHSS
Radiolink 2.4GHz R12DS 12 Ch Receiver SBUS/PWM DSSS&FHSS

Produsent: RADIOLINK

Radiolink 2.4GHz R12DS 12 Ch Receiver SBUS/PWM DSSS&FHSS

Spesifikasjoner:

Signal: SBUS,PWM

Channel: PWM 12 channels, SBUS 12 channels

Working Voltage: 3 -10V

Working Current: 38-45mA(input voltage: 5V)

Section Precision: 4096, 0,25 us per section

Control distance: 4 km i air 2 km on ground

Compatible telemetry: PRM-01 and PRM-03

Compatible transmitters: AT10II, AT10, AT9S Pro, AT9S, AT9

Size: 1.97*1.26*0.59in

Weight: 14g

Veil. 590,- Ikke medlem: 450,-
450,-
  • Betal med faktura
  • Betal med kort
  • Delbetaling
  • Vipps
På lager På lager

SKU: RL12DS

12 kanal kvalitets mottaker som passer til AT9, AT9S, AT9SPro, AT10 og AT10II. Opp til 4 km rekkevidde med sammen med AT9SPro og AT10II.

R12DS 12 Channels Receiver Overview:



With DSSS&FHSS protocol, which makes R12DS with excellent anti-interference ability, control range up to 2.4 miles(4km)

Support PWM/SBUS signal output and works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II.



Features:


Stronger Anti-interference: DSSS&FHSS communication technology makes R12DS receiver with stable transmission signal.

12 Channels: R12DS support standard SBUS/PWM signal output, compatible with fixed wing airplane, helicopter, truck, robot, etc.

Long Distance Control: outstanding control range up to 2.4 miles in air. (Actually control range depends on the using environment)

Real-time Information: When works with PRM-03 module and flight controller APM/Pixhawk/Mini PIX can give you real-time information on screen, like battery voltage, altitude, RSSI, flight mode, etc.

Higher precision and Safe Protection: PWM Low latency and output Lower power consumption. The voltage protection software technology of RadioLink ensures both transmitter and receiver are protected from a reverse polarity connection.



Please note:

  • 1. R12DS only work with Radiolink transmitter products: AT9S, AT9, AT9S Pro, AT10,AT10II.

  • 2. Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output



How to match code with transmitter:

  • 1. Put the transmitter and the receiver close to each other within 50 cm.

  • 2. Turn on the transmitter and R12DS.

  • 3. There is a black button on the R12DS,press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

  • 4. The antenna must be kept as straight as possible. Otherwise it will reduce the effective range.



Specifications:

  • Signal: SBUS,PWM

  • Channel: PWM 12 channels, SBUS 12 channels

  • Working Voltage: 4.8-10V

  • Working Current: 38-45mA(input voltage: 5V)

  • Size: 1.97*1.26*0.59in

  • Weight: 14g



Package Included:

  • R12DS receiver x 1
