Produsent: RADIOLINK

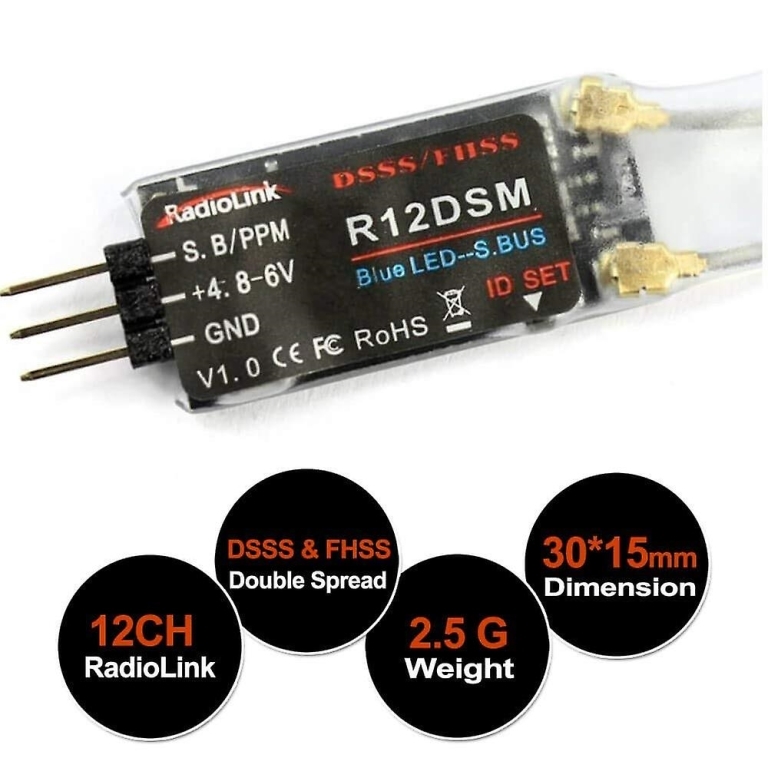

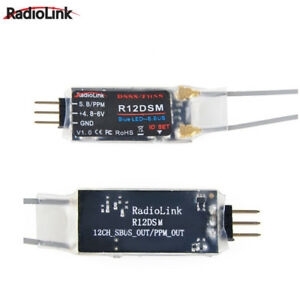

Radiolink R12DSM 2.4G 12 Channels Mini mottaker


Channel: 12ch

Signal Output: SBUS/PPM

Work Current: 40-180mA(5V)

Power Supply: 4.8~6V

RF Power: <10dbm

Precision: 4096

Size: 1.18*0.59*0.04in

Weight: 2g

Veil. 460,- Ikke medlem: 340,-
  • Betal med faktura
  • Betal med kort
  • Delbetaling
  • Vipps
På lager På lager


  • Produktinformasjon
  • Brukermanual

Radiolink R12DSM 2.4G 12 Channels Mini RC Receiver SBUS/PPM Long Range Control RX for FPV Racing Drone Quad Airplane Helicopeter for Radiolink AT9 AT9S AT9S Pro AT10II AT10 12CH Receiver R12DSM Overview




12 Channels: support universal SBUS/PPM standard signal for FPV racing drone.

Long Range Control: stable remote control range up to 2.4 miles in the air with AT10II transmitter.

Super Mini Size: light weight and tiny size for mini drone, such as 130 120 110 drone.

Strong Anti-interference: Dual antenna and DSSS&FHSS pseudo random algorithm to give R12DSM with excellent anti-interference ability.

Easy to Bind and Safe Protection: only 1 second bind to AT9/AT9S/AT9S Pro/AT10 AT10II transmitter. The voltage protection software technology of RadioLink ensures both transmitter and receiver are protected from a reverse polarity connection.


How to Match Code with Transmitter:


1. Put the transmitter and the receiver close to each other about of 50 cm.

2. Turn on the transmitter, then power on the R12DSM.

3.There is a black button on the R12DSM,press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

SBUS/PPM and PWM signal change:


Short press the ID SET switch two times within 1 second, the signal is changed from SBUS to PPM.

The red LED indicatesPPM signal.

The blue/purple indicates SBUSignal..


Package Included:


R12DSM Receiver x 1
