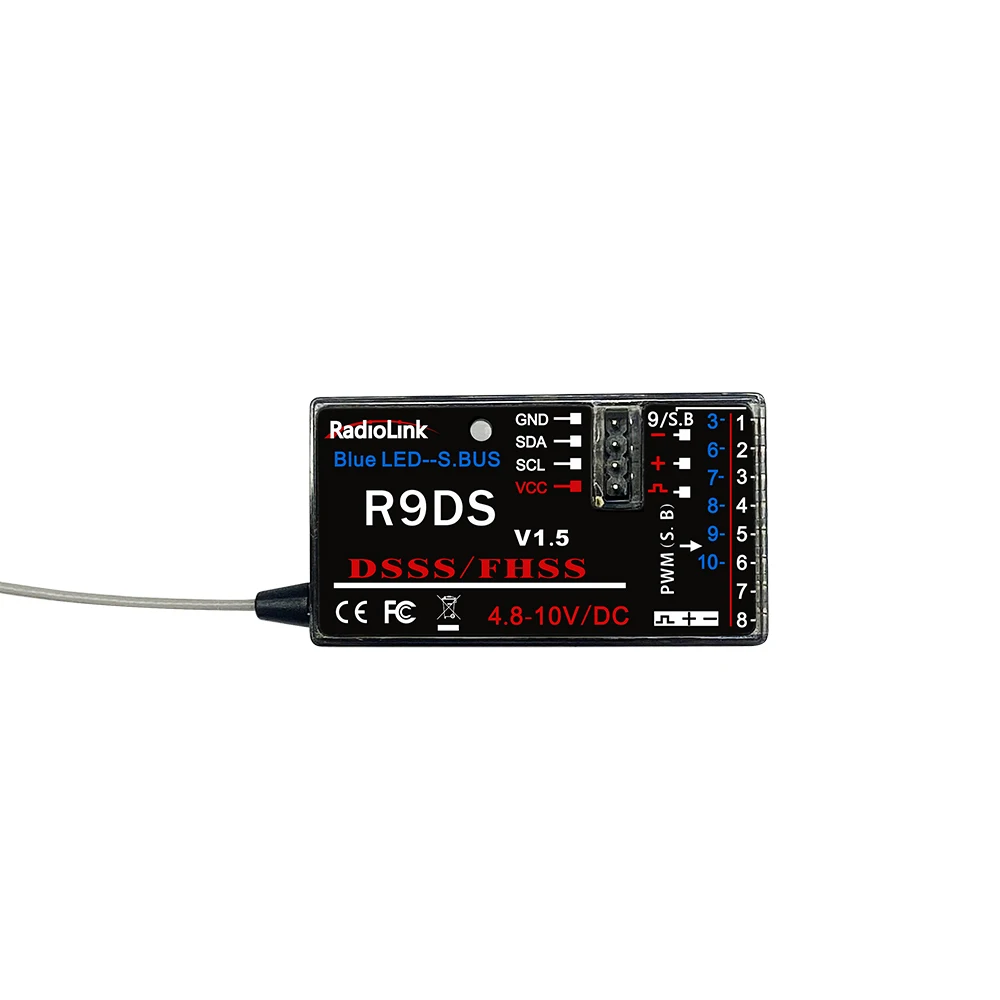

Radiolink R9DS 2,4 GHz DSSS & FHSS SBUS/PWM mottaker

Radiolink R9DS 2.4Ghz 9/10 Channels Receiver Flight Information Transmission RX Works with AT9S/AT9S Pro/AT9/AT10II/AT10

Features:

• Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give R9DS with excellent anti-interference ability.

• 9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel seletion is 10ch mode when it works with AT10II 12 channels transmitter, otherwise that will cannot works.

• Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.

• Long Range Control: outstanding control range up to 2.1 miles on air. (Actually control range depends on the using environment)

• Quick to Bind and Anti-polarity Protection: no need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.


Please note:

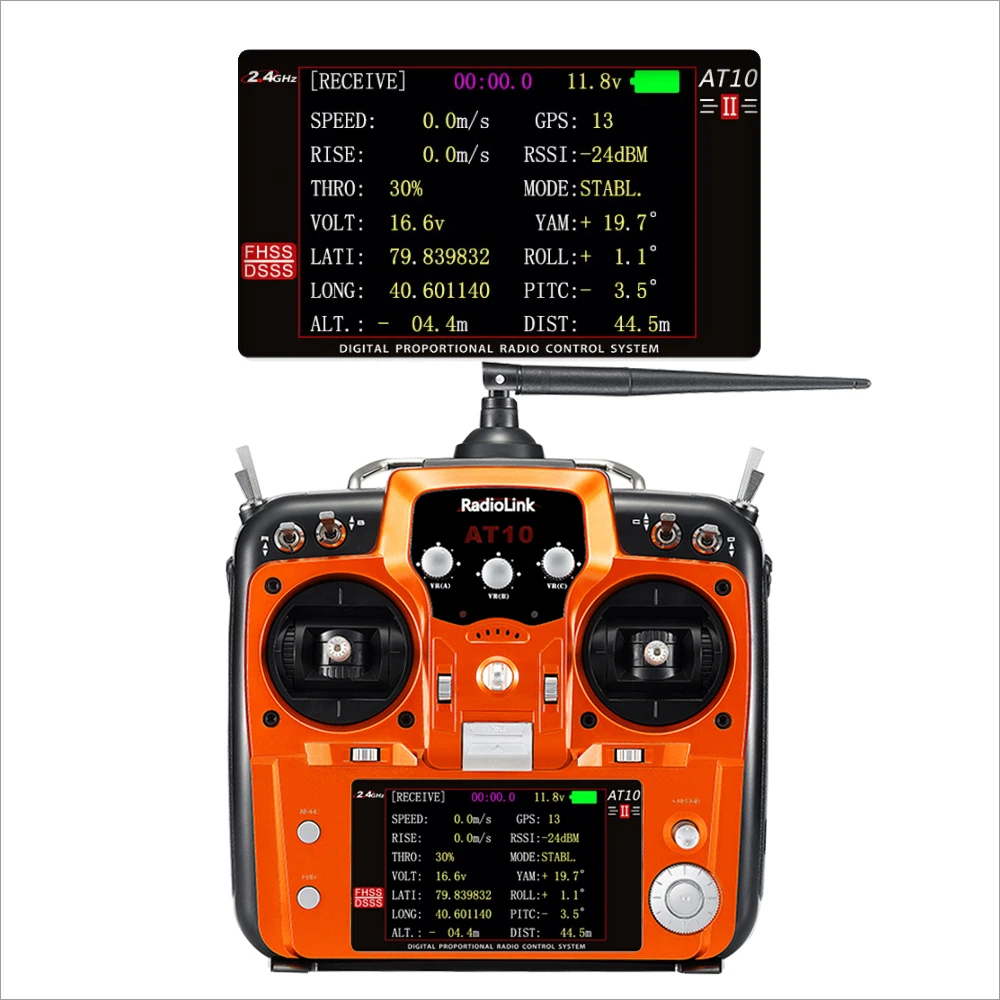

• 1.R9DS only work with Radiolink transmitter products:AT9S/AT9S Pro/AT9/AT10II/AT10

• 2.Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output.

• 3.Red light--9 channels PWM signal output.

  Blue light--10 channels SBUS and PMW signal output at the same time.


How to Match Code With Transmitter:

• 1. Place the transmitter and the receiver close to each other within 1 meter.

• 2. Turn on the transmitter, then power on the R9DS.

• 3. Connect CH3 of R9DS to ESC.

• 4.There is a black button on the R9DS, use a thin stick or pen press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking,match code success when receiver signal LED always on.


SBUS and PWM signal change：

• Short press the ID SET switch two times within 1 second, the signal is changed from normal

• PWM to SBUS. The red LED indicates the normal PWM and blue/purple LED indicates SBUS signal

Two signal working mode:

• (1)PWM signal output working mode：red LED indicates PWM signal output, 9 channels Totally.

• (2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels totally.

• SBUS and PWM signal possible working at the same time with SBUS signal output working mode.

• CH9 output SBUS signal, the original CH1 output CH3 and original CH2 to CH6 output CH6 to CH10 PWM signal at the same time.

R9DS Receiver Specifications:

• Signal: SBUS,PWM

• Channel: PWM 9 channels, SBUS 10 channels

• Control Distance: 900m on ground,1500m air

• Working Voltage: 4.8-10V

• Working Current: 38-45mA（input voltage: 5V）

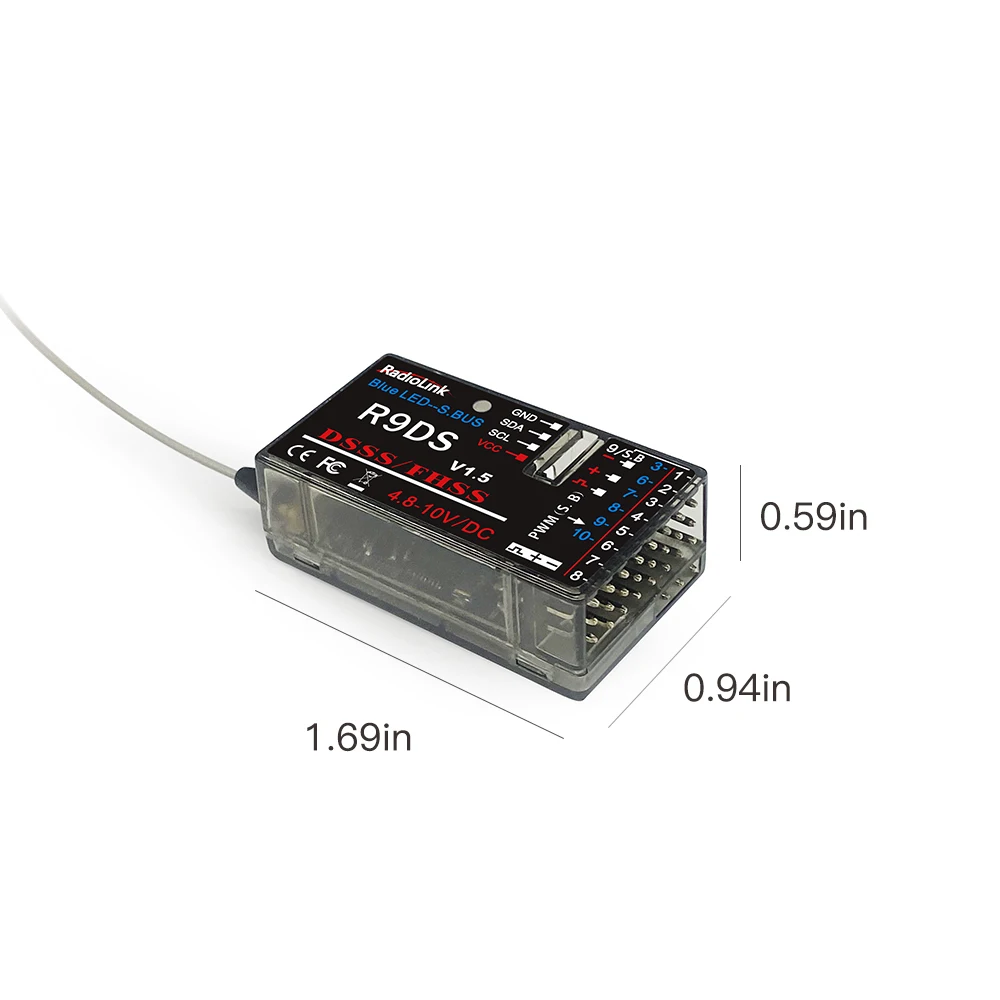

• Size: 43*24*15mm

• Weight: 10g

Package Included:

• R9DS Receiver x 1
