Produsent: MULTIPLEX

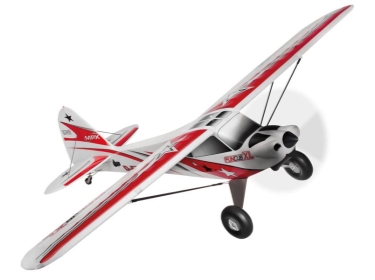

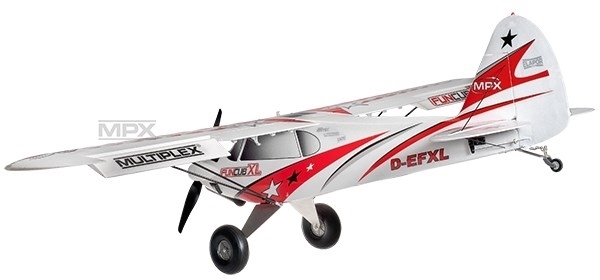

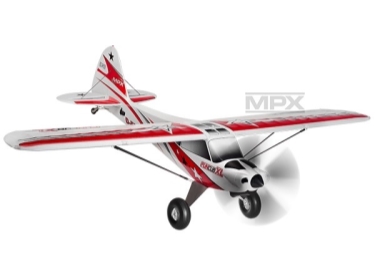

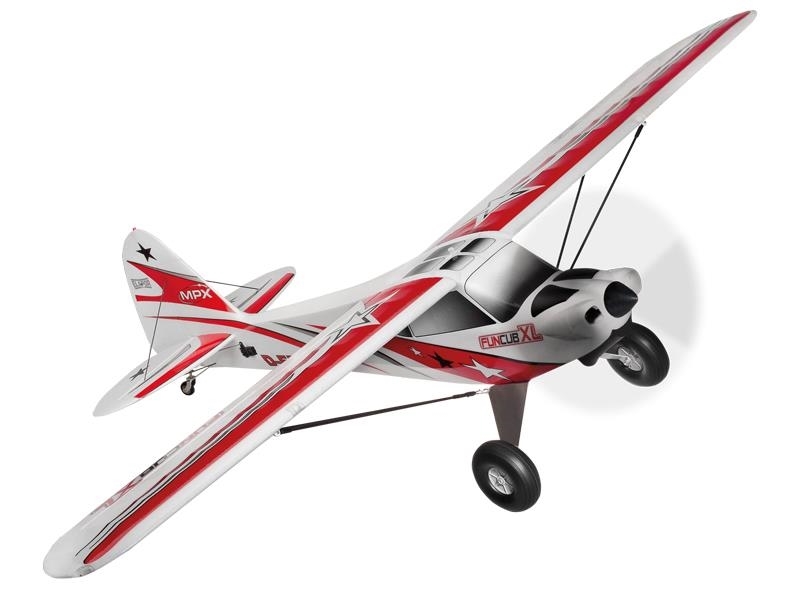

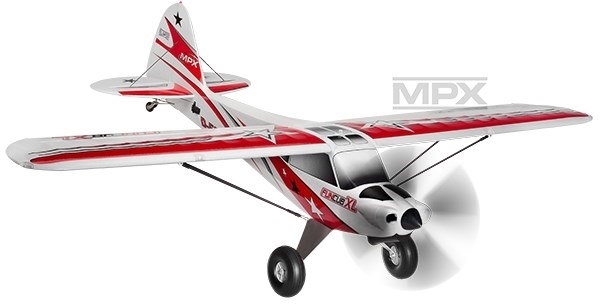

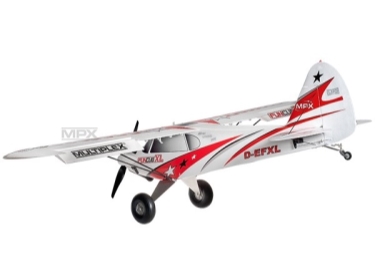

Multiplex FunCub XL 1700 mm Kit
Spesifikasjon:
Wingspan: 1700 mm
Overall Length: 1200 mm
Flying Weight: Around 1950 - 2850 gram (4S - 6S batteri)
Propeller:13 x 6,5"
Motor Size: Brushless 3536-KV 850
ESC: 40 Amp
Servo: 17 g Servo x 6 stk
Gyro: not included
Radio: min 6 Channel - not ncluded
Recommended Battery: Li-Po 4S 14,8V 2200 mAh - not included
Charger: 4 S LiPo - not icluded
Utgave: Lettvekt
- Betal med faktura
- Betal med kort
- Delbetaling
- Vipps
SKU: Multiplex-FunCub-XL-Kit
- Produktinformasjon
- Video
- FunCub XL manual
Produktinformasjon
Med materialet Elapor oppnår man en solid konstruksjon som tåler mye, samtidig som det er veldig lett. Med modellens lette vekt og kraftig motoroppsett ved bruk av 4 - 6s LiPo oppnår man en flytid på rundt 10-15 minutter avhengig av flystil. Anbefalt batteri er 4S - 6S 2200 - 5000mAh med XT60-kontakt. modellen kan flys med alt fra 4S til 6S LiPo batteri. Med 4S batteri blir modellen betydelig lettere.
Det du trenger i tillegg er:
Radio med min 6 kanaler
Mottaker
6 stk mini servoer
Motor
Regulator (ECS)
Propell
Batteri (LiPo)
Lader
Lim
Product details in english:
We developed the MULTIPLEX FunCub XL as a large multi-function high-wing aerobatic tug doubling as a fun machine. The XL boasts incredible short take-off and landing (STOL) capability. With its large, soft tundra tyres it copes with any terrain, and can be flown just about anywhere The kit will delight you wih its high-level pre-fabrication. To fly the model you will need at least a seven-channel radio control system, a suitable receiver, six HiTEC HS-225 BB servos, the MULTIPLEX "FunCub XL" power set and a 6s LiPo battery of 3200 mAh capacity. This ELAPOR model features many great details including very elegant LED covers for the optional lighting system based on the POWER-MULTIlight (# 7 3030) - a real eye-catcher. It also includes an aero-tow release as standard, and a large load bay for which a matching parachutist (# 852004) is also available. If you wish to use the supplementary functions, you will need a radio control system with at least ten channels. Naturally a sensible floats set (# 733098) of FunCub XL proportions is also available.
The FunCub XL responds very accurately to the controls - like a proper grown-up aircraft! We provided the model with large control surfaces and plenty of power, and its nicely balanced handling makes it capable of vertical climbs, aerobatics and knife-edge flight - even torque rolls are possible!

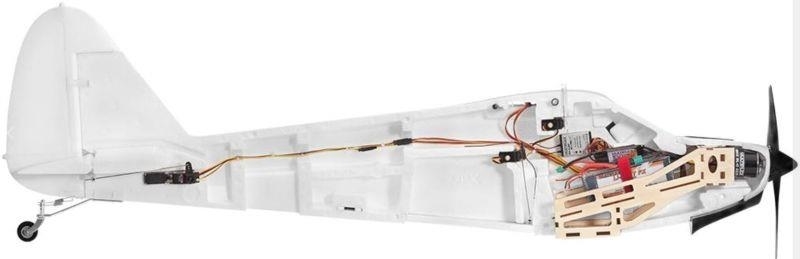

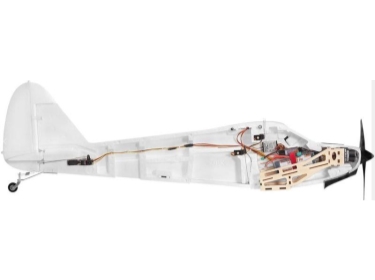

A series of very sophisticated design details are a distinctive feature of the FunCub XL, which sets new standards in its class. "M-frame technology" ensures an extremely robust fuselage, while strong, lightweight carbon fibre tubes do the same for the wings. The aircraft also includes offset landing flaps and struts with quick-release fittings for fast, ultra-simple rigging at the field.
Features:
- Highly pre-fabricated kit
- Pre-cut decal sheet
- Many supplementary functions raise the fun factor to amazing heights
- Extremely precise, mature flying characteristics
- Offset landing flaps for steep descents and short take-off capability
- Huge, soft wheels provide off-road ability
- "M-frame technology" ensures a robust fuselage
- Strong, lightweight carbon tubes in the wings
Low minimum flying speed - Suitable for aero-towing gliders (e.g. HERON-size)
- Separate wing panels for ease of transport
Multiflex FunCub XL er ett flott modellfly med vingespenn på 1,7 meter. Denne utgaven leveres som KIT. Dvs uten motor, ESC, servoer, radio, batteri og lader.
