Produsent: MODELL HOBBY
35kg TD8135MG High Torque Coreless Motor Servo Waterproof Digital 180 Degree Servo
Specification:
Operating voltage: 4.8V - 7.2V
No load speed: 0.18sec/60° - 0.14sec/60°
Running current: 140mA - 200mA
Peak stall torque: 23.5kg.cm-26.8kg.cm
Stall current: 2600mA±10% - 3400mA±10%
Working voltage range: 4.8 - 7.2V

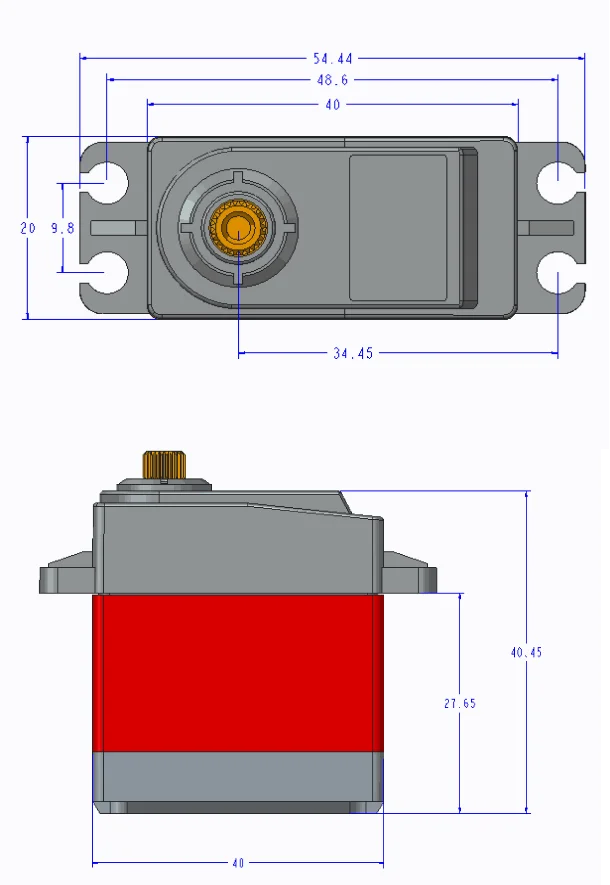

Size: 40.0*20.5*40.5mm
Weight: 56g±2g
Gear type: 5 Metal
Limit angle: 360°
Bearing: 2 pcs Ball Bearing
Horn gear spline: 25T Diameter: 5.9mm
Horn type: Aluminium and POM
Case : PBT + Aluminum alloy

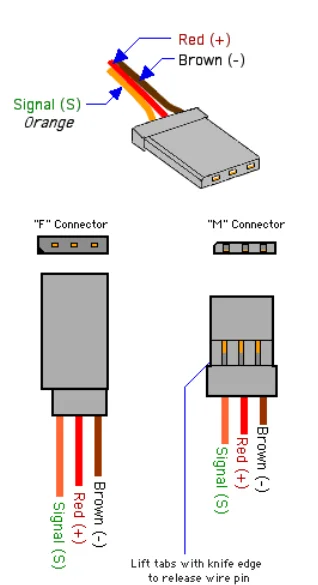

Connector wire: 320mm±5mm
Motor: Carbon brush motor
SKU: TD8135MG
-
Fri frakt*:
Du er 0.00 Nok kroner unna å få FRI FRAKT!
FRI FRAKT!
-
Enkel retur:
14 dagers returrett -
Trygg levering:
Vi leverer kun med posten/bring
- Produktinformasjon
Produktinformasjon
Meget god kvalitets 35 kg vanntett metallgear heldigital coreless servo med strambar aluminiumsarm.
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500~2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500~2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000~2000usec)
