Produsent: MODELL HOBBY

25kg TD8325MG High Torque Coreless Motor Servo Waterproof Digital 180 Degree Servo

Specification:

1.Operate voltage: 4.8V - 7.2V
2.No load speed: 0.18sec/60° -  0.14sec/60°
3.Running current: 140mA - 200mA
4.Peak stall torque: 23.5kg.cm-26.8kg.cm
5.Stall current: 2600mA±10% -  3400mA±10%
6.Working voltage range:  4.8 - 7.2V

Control Specification:

1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500~2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500~2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000~2000usec)
Veil. 450,- Ikke medlem: 298,-
298,-
  • Betal med faktura
  • Betal med kort
  • Delbetaling
  • Vipps
På lager På lager

SKU: TD8325MG

  • Produktinformasjon
Meget god kvalitets 25 kg vanntett metallgear heldigital coreless servo med strambar aluminiumsarm.

Apply Environmental Conditon:
1.Storage Temperature Range: -30°C~80°C
2.Operating Temperature Range: -25°C~70°C

Standard Test Environment:
1.Temperature Range: -25°C~70°C
2.Humidity Range: 65%±10%

Mechanical Specification:

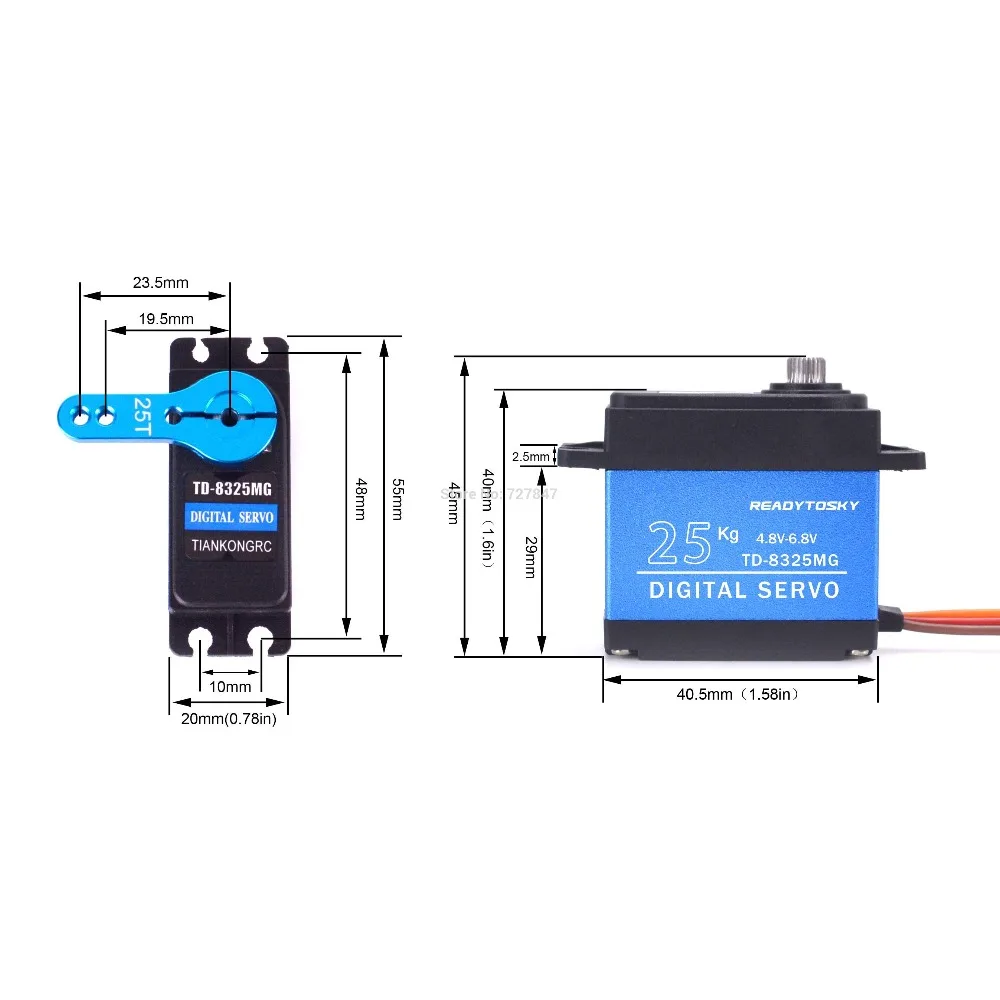

1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type:  5 Metal
4. Limit angle: 360°
5.Bearing: 2BB
6. Horn gear spline: 25T   Diameter:5.9mm
7. Horn type: Plastic, POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10.Motor: Carbon brush motor
Steering angle: 180 Degree control by remote control
