Produsent: RADIOLINK

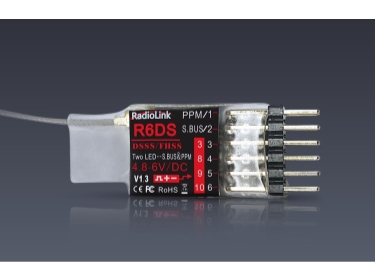

Radiolink R6DS 2.4G 6/10 Ch mottaker SBUS/PWM/PPM

Specifications:

Channel: PWM:6CH; SBUS&PPM: 10CH
Signal Output:: SBUS/PPM/PWM
Model: racing drone/quadcoptor
Control Distance: more than 600m air
Spread Spectrum: FHSS
Work Current: 38-45mA(5V)
Power Supply: 4.8~6V
RF Power: <10dbm
Precision: 4096
Size: 0.98*0.59*0.4in
Weight: 3.5g
Veil. 390,- Ikke medlem: 290,-
290,-
  • Betal med faktura
  • Betal med kort
  • Delbetaling
  • Vipps
På lager På lager

SKU: RLR6DS

  • Produktinformasjon
  • Brukermanual

R6DS 10 Channels Receiver Overview:



With DSSS&FHSS protocol, which makes R6DS with excellent anti-interference ability.

R6DS with reverse polarity protection circuit, not damage the receiver even you insert wrong polarity.

Support PPM/SBUS/PWM signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II.



R6DS Key Features:


Excellent Anti-interference:with DSSS&FHSS pseudo random algorithm to give R6DS with excellent anti-interference ability.

6/10 Channels:Support PWM/PPM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II.

Fast Response:High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.

Mini Size:Only 0.98*0.59 inch, 0.12OZ, suitable for most of racing drone, quadcopters, fixed wing in the market.

Easy to Use and Safe Protection:Only 1 second to bind with your radio, press twice within 1 second to change signal output. The voltage protection software technology of RadioLink ensures both transmitter and receiver are protected from a reverse polarity connection.



How to Match Code With Transmitter:

1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Turn on the transmitter, then power on the R6DS.
3.There is a black button on the R6DS, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.


SBUS/PPM and PWM signal change

Short press the ID SET switch 2 times within 1 second, the signal is changed from normal PWM to SBUS/PPM. The red LED indicates the normal PWM, the blue/purple indicates SBUS/PPM.


SBUS&PPM Output Working Mode:

1.CH1 out PPM signal, CH2 output SBUS signal.
2.CH3 output PWM signal and CH4-CH6, CH8-CH10 independent output PWM signal simultaneously, 10CH totally


R6DS Receiver Specifications:

Channel: PWM:6CH; SBUS&PPM: 10CH
Signal Output:: SBUS/PPM/PWM
Model: racing drone/quadcoptor
Control Distance: more than 600m air
Spread Spectrum: FHSS
Work Current: 38-45mA(5V)
Power Supply: 4.8~6V
RF Power: <10dbm
Precision: 4096
Size: 0.98*0.59*0.4in
Weight: 3.5g


Package Included:

R6DS Receiver x 1
