Produsent: RADIOLINK

Radiolink PRM-03 Airplane Battery Voltage Telemetry Module

Spesifikasjoner:

Size:  27 x 13 mm
Weight:  6 gram
Voltage input range:  1S - 12S LiPo battery
Control distance:  Same as receivers control distance
Compatible receivers:
R9D/R9DS/R10D/R10DII/R10DS/R12DS
Compatible transmitters:  AT9, AT9S, AT9S Pro, AT10 or AT10II
Compatible fligt controller:  Mini Pix, Pixhawk, Turbo Pix, APM

Veil. 390,- Ikke medlem: 298,-
298,-
  • Betal med faktura
  • Betal med kort
  • Delbetaling
  • Vipps
kommer snart kommer snart

SKU: RLPRM-03

  • Produktinformasjon
  • Video
  • Brukermanual

Koblet sammen med Mini Pixhawk så kan man få real time informasjon fra modellen til displayet på senderen om Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance information osv Se video om dette.
Passer til
R9D/R9DS/R10D/R10DII/R10DS/R12DS mottakere og AT9, AT9S, AT9S Pro, AT10 or AT10II sendere.



Radiolink PRM-03 Real-time OSD Information Telemetry Module Get GPS RSSI Voltage(1S-12S) and More on TX, for AT9S Pro&AT10II, Come with Connect Cables



Features:


OSD Telemetry module transmitter the data from the flight controller and shows the data of SPEED, RISE, THRO, VOLT, LATI, LONG, ALT, GPS, RSSI, MODE, YAW, ROLL, PITC, DIST in the display screen of AT9, AT9S, AT9S Pro, AT10 or AT10II.

Please note:
1.Two working mode-Telemetering module voltage when connect with receiver. Telemetering model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance when connect with supported flight controller.



2.Mini dimension, only 1.06"*0.51" and light weight of 0.21oz make PRM-03 won't become your drone's burden.



3.Compatible flight controller: Mini Pix/PIXHAWK/TURBO PiX/APM



4.Compatible transmitter AT10II/AT10/AT9S Pro/AT9S/AT9, easy to connect with R12DS, R9DS (Old version receiver: R10DS, R10D, R9D).



5.PRM-03 is compatible with 1 cell to 12 cells battery(3.7~50.4V).



How to Match Code With Transmitter:

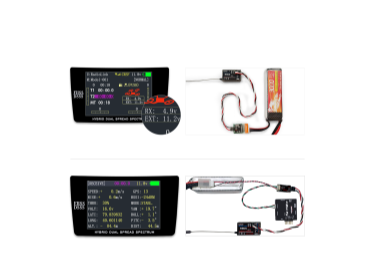

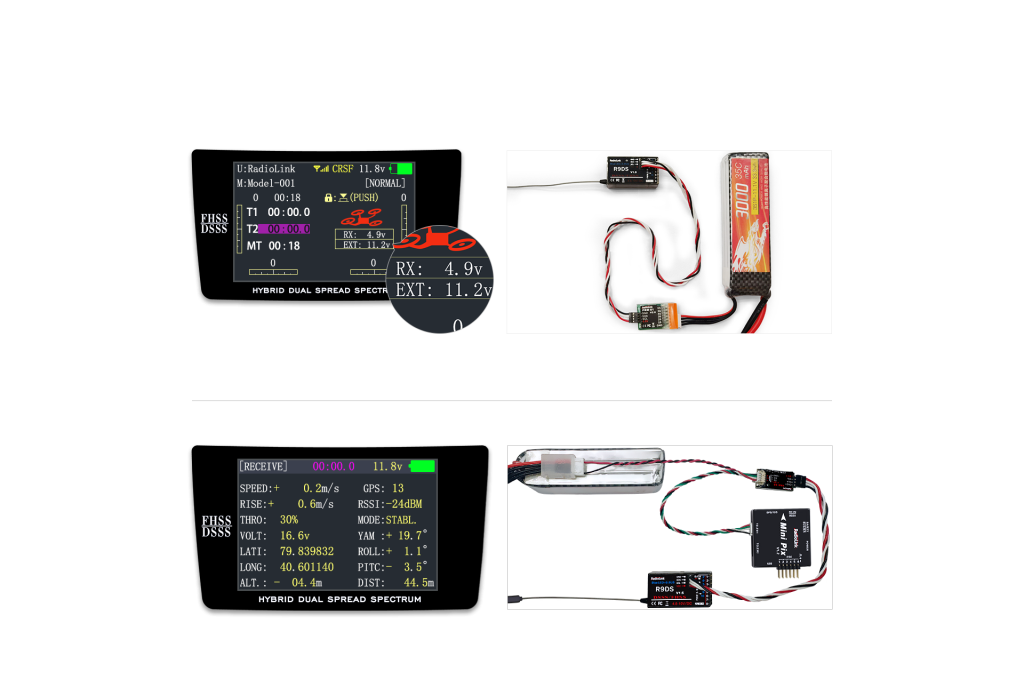

(1) Connect one end of the telemetry module PRM-03 to R9D/R9DS/R10D/R10DII/R10DS/R12DS and the other end to battery if you just need feedback battery voltage. Same function as RadioLink PRM-01 if you connect like that.



(2) If you want to feedback Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance information, please connect one end of the OSD information telemetry module PRM-03 to R9D/R9DS/R10D/R10DII/R10DS/R12DS and the other end to the TELEM port of PIX or APM.



Specifications:



Size: 27*13 cm

Weight: 2g

Package Included:

PRM-03  x 1

Cable*4
